LQ190E1LW62 Sharp 19" LCM 1280×1024RGB 450cd/m² INDUSTRIAL LCD DISPLAY

Name: LQ190E1LW62 Sharp 19quot LCM 12801024RGB 450cdm INDUSTRIAL LCD DISPLAY
Brand: SHARP
Price: 1 USD

Wholesale LQ190E1LW62 Sharp 19" LCM 1280×1024RGB 450cd/m² INDUSTRIAL LCD DISPLAY from china suppliers

Brand Name : SHARP

Model Number : LQ190E1LW62

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/WESTERN UNION/ESCROW

Supply Ability : 500PCS

Delivery Time : 1-2 DAYS

Packaging Details : 10 pcs / box 16 Kgs 550×410×415 mm (L×W×H)

Screen Size : 19.0 inch

Model Name : LQ190E1LW62

Screen Type : LCM, a-Si TFT-LCD

Pixel Number : 1280(RGB)×1024 (SXGA) 86PPI

Active Area(mm) : 376.32 × 301.056 (H×V)

Luminance : 450 cd/m² (Typ.)

Viewing Angle : 85/85/85/85 (Typ.)(CR≥10)

Backlight : WLED , 50K hours , With LED Driver

Signal Type : LVDS (2 ch, 8-bit) , 30 pins Connector

Max. Ratings : Storage Temp.: -25 ~ 65 °C Operating Temp.: -15 ~ 65 °C

Contact Now

LQ190 Series LQ190E1LW72 LQ190E1LW62 LQ190E1LW61

Sharp LQ190E1LW62 Mechanical Features

Panel Size :	19.0 inch
Pixel Features :	Resolution	Pixel Arrangement	Dot Pitch (W×H)	Pixel Pitch (W×H)
Pixel Features :	1280(RGB)×1024, SXGA	RGB Vertical Stripe	0.098×0.294 mm	0.294×0.294 mm [86PPI]
Mechanical Size :	Active Area (W×H)	Bezel Area (W×H)	Outline Dimension (W×H)	Outline Depth
Mechanical Size :	376.32×301.056 mm	-	396×323.5 mm	11.5±0.5 mm
Outline Features :	Form Style	Aspect Ratio	Orientation	Shape Style
Outline Features :	Flat Rectangle	5:4 (W : H)	Landscape type
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Features :	Panel Cover	Weight	Surface
Other Features :	-	1.30Kgs (Max.)	Antiglare, Hard coating (3H)

Sharp LQ190E1LW62 Optical Features

Basic Information :	Brightness	Operating Mode	Contrast Ratio
	450 cd/m² (Typ.)	ASV, Normally Black, Transmissive	1000:1 (Typ.) (Transmissive)
	Viewing Angle(L/R/U/D)	Viewing Direction	Response Speed
	85/85/85/85 (Typ.)(CR≥10)	Symmetry	12 (Typ.)(Tr+Td) (ms)
Dispaly Color :	Color Temperature	Color Amount	White color Chromaticity
Dispaly Color :	6485K	16.7M (8-bit)	X:0.313; Y:0.329
1931 Color Gamlt :	NTSC Ratio	sRGB Coverage	Adobe RGB Coverage
	92%	100%	88%
	DCI-P3 Coverage	Rec.2020 Coverage	Remarks
	94%	68%	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Luminance Variation :	1.33 (Max.)(5 points)

Sharp LQ190E1LW62 Interface Features

Signal Electrical :	Current Input		Voltage Input			Consumption
Signal Electrical :	0.55/1.00A (Typ./Max.)		5.0V (Typ.)			-
Interface Features :	Position	Type	Interface
Interface Features :		Connector	LVDS (2 ch, 8-bit)
Signal Interface :	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Signal Interface :	HRS	DF14H-30P-1.25H(56)	1 pcs	1.25 mm	30 pins	LVDS-30P2C8B-190C

Sharp LQ190E1LW62 Backlight Features

Backlight Features:	Type	Position	Shape	Amount	Life(Hours)	Replacement
Backlight Features:	WLED	Edge light type	-	-	50K(Typ.)	-
Interface Features :	Position	Type	WLED Driver
Interface Features :		Connector	With LED Driver
Interface Detail	Brand	Model	Amount	Pin Pitch	Pins	Pin Assignment
Interface Detail	JST	SM10B-SHLS-TF	1 pcs	1.0 mm	10 pins
Driver Electrical :	Current Input		Voltage Input			Consumption
Driver Electrical :	-		12.0±1.2V			-

FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

LQ190E1LW62 Sharp 19" LCM 1280×1024RGB 450cd/m² INDUSTRIAL LCD DISPLAY

Product Tags:

LVDS TFT LCD Display

CCFL Sharp TFT LCD Display

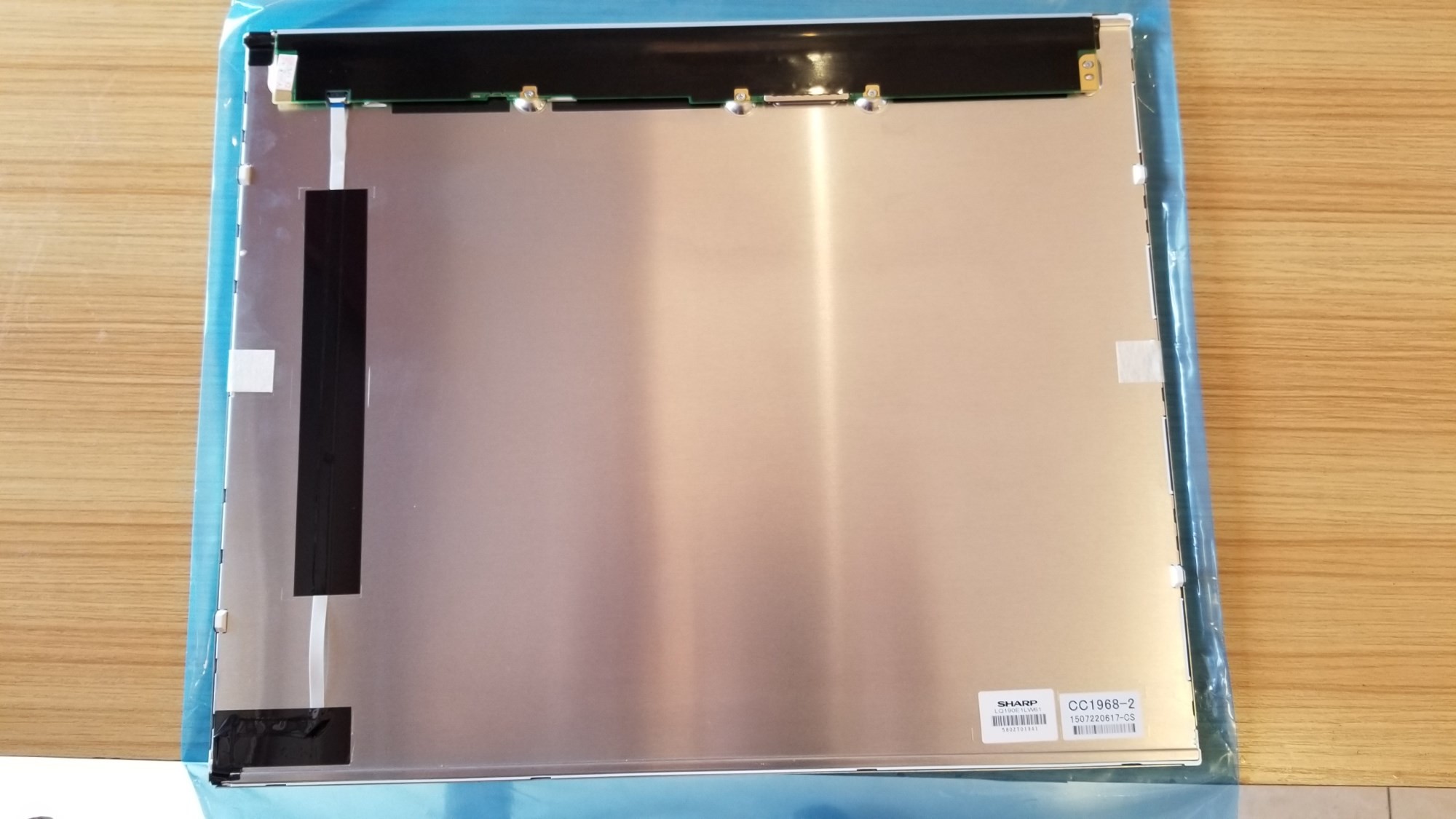

LQ190E1LW62 Sharp 19" LCM 1280×1024RGB 450cd/m² INDUSTRIAL LCD DISPLAY Images
