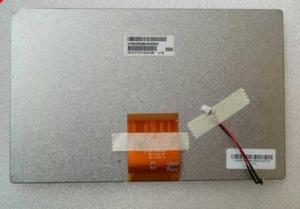

LQ7BW566 Sharp 7" LCM 480×234RGB 300 cd/m² INDUSTRIAL LCD DISPLAY

  • 1
  • 2
  • 3

Brand Name : Sharp

Model Number : LQ7BW566

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 100PCS

Delivery Time : 1-2DAYS

Size : 7"

Model : LQ7BW566

Active Area : 155.52(H)×87.75(V) mm

Pixel Format : 480(RGB)×234 75PPI

Luminance : 300 cd/m² (Typ.)

Light Source : CCFL [2 pcs] , 10K hours , W/O Driver

Power Supply : 5.3/13/-16V (Typ.)(VSH/VGH/VGL)

Interface Type : Analog RGB + Composite Video (NTSC/PAL) , 24 pins Connector

Contact Now

Sharp LQ7BW566 Application Details

Basic Detail : Manufacturer Model Name LQ7BW566
Panel Type a-Si TFT-LCD , LCM Another Name -
Panel Size 7.0 inch Designed For
Maximum Ratings : OP Temperature -30 ~ 85 °C ST Temperature -30 ~ 85 °C
Vibration Level - RoHS

Sharp LQ7BW566 Optical Details

Basic Information : Luminance 300 cd/m² (Typ.) Contrast Ratio 60 : 1 (Min.) (Transmissive)
Good View at 6 o'clock Response Speed 30/50 (Typ.)(Tr/Td) (ms)
Viewing Angle 65/65/40/65 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.313; Wy:0.329 Support Color Full color
Color Temperature 6485K White Uniformity

Sharp LQ7BW566 Mechanical Details

Pixel Features : Number of Pixel 480(RGB)×234 Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.108×0.375 mm Pixel Pitch(W×H) 0.324×0.375 mm [75PPI]
Physical Size : Active Viewing 155.52(W)×87.75(H) mm Overall Dim. 173(W)×106(H) mm
Bezel Opening - Overall Depth 14.7±0.5 mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style
Fixation : Rear mounting holes (4-Φ2.6)
Other Detail : Mass 320±20g Surface Antiglare, Antireflection

Sharp LQ7BW566 Electronics Details

Refresh Rate : 60Hz
Reverse Scan : Yes (U/D, L/R)
Power Consumption : 5.45W (Typ.)
Time Controller (T-CON) : Embedded T-CON

Sharp LQ7BW566 Interface Details

Signal Electrical : Input Current 75/0.9/2.8mA (Typ.)(ISH/IGH/IGL) Input Voltage 5.3/13/-16V (Typ.)(VSH/VGH/VGL)
Consumption 454/558mW (Typ./Max.) Signal Interface Analog RGB + Composite Video (NTSC/PAL)
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
FCI SFR24R-1STE1 1 pcs 0.8 mm 24 pins

Sharp LQ7BW566 Lightting Details

Lamp Features: Lamp Shape - Lamp Type CCFL Position Direct light type
Exchange - Amount 2 pcs Life 10K(Min.) (Hours)
Lamp Electrical : Input Current 3.0/6.5/7.0mA (Min./Typ./Max.) Input Voltage 380±40V
Frequency 30/70KHz (Min./Max.) Turn-on Voltage 950/1100V (Max.)(Ta=+25/-30℃)
Consumption 5.0/5.9W (Typ.Max.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BHR-02(8.0)VS-1N 2 pcs 8.0 mm 2 pins BLL-2PINS-HL
Backlight Driver : No
