WLED 102PPI 21.5" 1920×1080 Square Tft Display M215HNE-L30 Rev.C1

Brand Name : INNOLUX

Model Number : M215HNE-L30 Rev.C1

Certification : ISO9001

Place of Origin : JAPAN

MOQ : 1PCS

Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION

Supply Ability : 1000PCS

Delivery Time : 1-2 DAYS

Packaging Details : STANDARD PACKING

MODEL NUMBER : M215HNE-L30 Rev.C1

BRAND : INNOLUX

SIZE : 21.5 inch

BRIGHTNESS : 250CD/M2

Lamp Type : WLED

RESOLUTION : 1920(RGB)×1080 (FHD) 102PPI

VIEWING ANGLEG : 89/89/89/89 (Typ.)(CR≥10)

TEMPERATURE RANGE : Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C

Contact Now

Innolux M215HNE-L30 Rev.C1 Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
M215HNE-L30 Rev.C1 a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
0 ~ 50 °C -20 ~ 60 °C

Innolux M215HNE-L30 Rev.C1 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
250 (Typ.) 89/89/89/89 (Typ.)(CR≥10) 15/5 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
Symmetry Super MVA, Normally Black, Transmissive 3000 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 16.7M (8-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
74% 96% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
76% 55% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Variation : 1.43 (Max.)(9 points)

Innolux M215HNE-L30 Rev.C1 Mechanical Features

Panel Size : 21.5"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
1920(RGB)×1080 [FHD] RGB Vertical Stripe 0.24795×0.24795 [102PPI] 0.08265×0.24795
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
476.064(H) × 267.786(V) 479.84(H) × 271.3(V) 495.6(H) × 292.2(V) 8.7/12.0 (Typ./Max.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 16:9 (H:V) Normal bezel
Mounting : Side mounting holes (4-M3) on up, down bezel
Other Detail : Weight Panel Cover Treatment
1.80/1.85Kgs (Typ./Max.) - Antiglare, Hard coating (3H)

Innolux M215HNE-L30 Rev.C1 Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type (Right side) 4 strings 4 strings 40K(Min.) -
WLED Electrical : Voltage Supply Current Supply Power
25.6/28.0V (Typ./Max.) 120/125mA (Typ./Max.) 12.3/13.44W (Typ./Max.)
Interface Features : Position Backlight Driver Type
No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
CviLux CI1406SL000-NH 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC

Innolux M215HNE-L30 Rev.C1 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
5.0V (Typ.) 1.13/1.40 (Typ./Max.) 5.7/7.1W (Typ./Max.)
Interface Features : Position Signal Type
LVDS (2 ch, 8-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
P-TWO 187098-30091 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A

Innolux M215HNE-L30 Rev.C1 Packing Features

Package Box : Quantity Weight Box Size
10 pcs / box 19.9 Kgs 567×301×376 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

WLED 102PPI 21.5" 1920×1080 Square Tft Display M215HNE-L30 Rev.C1


Product Tags:

21.5" 1920×1080 Square Tft Display



WLED 102PPI Square Tft Display



M215HNE-L30 Rev.C1


Wholesale WLED 102PPI 21.5" 1920×1080 Square Tft Display M215HNE-L30 Rev.C1 from china suppliers

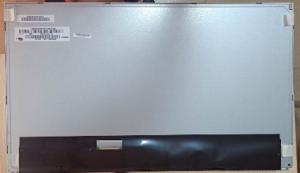

WLED 102PPI 21.5" 1920×1080 Square Tft Display M215HNE-L30 Rev.C1 Images
