Sharp LQ121S1LG86 Mechanical Details
| Pixel Features : | Resolution 800(RGB)×600, SVGA Dot Pitch(mm) 0.1025×0.3075 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.3075×0.3075 (H×V) [82PPI] |
| Mechanical Size : | Active Area(mm) 246(H) × 184.5(V) Bezel Area(mm) 249.0(H) × 187.5(V) Outline Dim.(mm) 276(H) × 209(V) Depth(mm) 9.6 (Max.) |
| Outline Features : | Form Style Flat Rectangle Shape Style Aspect Ratio 4:3 (H:V) Orientation Landscape type |
| Mounting : | Face mounting holes (2-Φ3.4, 2-R1.7) on left, right bezel |
| Other Spec : | Weight 600g (Max.) Treatment Antiglare, Hard coating (3H) |
Sharp LQ121S1LG86 Optical Details
| Basic Information : | Luminance(cd/m²) 1500 (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive) Viewing Angle 80/80/80/60 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 6 o'clock Response(ms) 30 (Typ.)(Tr+Td) |
| Color Performance : | White Coordinate Wx:0.305; Wy:0.315 Display Colors 262K (6-bit) Color Temperature 7106K White Uniformity 1.33 (Max.)(5 points) |
| 1931 Color Gamlt : | NTSC Ratio 49% sRGB 67% coverage Adobe RGB 51% coverage DCI-P3 51% coverage Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility Sunlight Readable Transmissivity - |
Sharp LQ121S1LG86 Interface Detail
| Signal Electrical : | Voltage Supply 3.3V (Typ.) Current Supply 250/350mA (Typ./Max.) |
| Signal Type : | LVDS (1 ch, 6-bit) Logic Voltage - |
| Interface Features : | Position - Type Connector |
| Interface Detail : | Brand Model Pitch Pins Quantity Pin Configuration JAE 1.25 mm 20 pins 1 pcs LVDS-20P1C6B-070F |
Sharp LQ121S1LG86 Backlight Details
| Backlight Features : | Type WLED Quantity - Position Edge light type Replacement - Shape - Life Time 50K(Typ.) (Hours) |
| Interface Features : | Position - Type Connector |
| Interface Detail : | Brand Model Pitch Pins Quantity Pin Configuration JST 1.0 mm 6 pins 1 pcs |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Voltage Supply 12.0±1.2V Current Supply 1.0/1.5A (Typ./Max.) |
LQ121S1LG86 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 246(W)×184.5(H) mm, outline size of 276(W)×209(H)×9.6(D) mm, viewing area size of 249.0(W)×187.5(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 600g (Max.). As a TN, Normally White, Transmissive LCM product, LQ121S1LG86 can provides 1500 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver. LQ121S1LG86 utilizes LVDS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 20 pins Connector with power supply voltage of 3.3V (Typ.).
Product Tags:
|
|

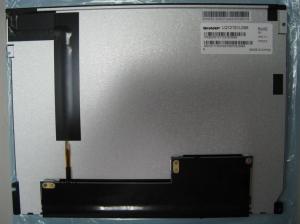

12.1" LCM 800×600RGB 1500cd/m² LQ121S1LG86 Sharp TFT LCD Display Images
|
