LQ125 Series LQ125D1JW34 LQ125D1JW33 LQ125D1JW31
Sharp LQ125D1JW31 Mechanical Features
| Panel Size : | 12.5 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3840(RGB)×2160, UHD | RGB Vertical Stripe | 0.024×0.072 mm | 0.072×0.072 mm [352PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 276.48×155.52 mm | - | 282.08×169.49 mm | 2.05/4.6 (Typ./Max.) mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | Slim (PCBA Bent, T≤3.0mm) |
| Fixation : | Without |
| Other Features : | Panel Cover | Weight | Surface |
| - | 185g (Max.) | Antiglare (Haze 45%) |
Sharp LQ125D1JW31 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 30 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.2M (8-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 96% | 100% | 100% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 88% | 71% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.53 (Max.)(5/13 points) |
Sharp LQ125D1JW31 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 570/630mA (Typ./Max.) | 3.3V (Typ.) | 1.88/2.08W (Typ./Max.) |
| Interface Features : | Position | Type | Interface |
| | Connector | eDP (4 Lanes) |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20525-040E-02 | 1 pcs | 0.4 mm | 40 pins |
Sharp LQ125D1JW31 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | - | - | 15K(Min.) | - |
| Interface Features : | Position | Type | WLED Driver |
| - | Included in panel signal interface | With LED Driver |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| 342/387mA (Typ./Max.) | 5.0/12.0/21.0V (Min./Typ./Max.) | 4.1/4.64W (Typ./Max.) |
LQ125D1JW31 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 352 PPI. As for mechanical detail, it features active area of 276.48(W)×155.52(H) mm, outline size of 282.08(W)×169.49(H)×4.6(D) mm, with surface treament of Antiglare (Haze 45%), net weight of 185g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a IPS, Normally Black, Transmissive LCM product, LQ125D1JW31 can provides 400 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 100% (Adobe). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver.
Product Tags:
|
|

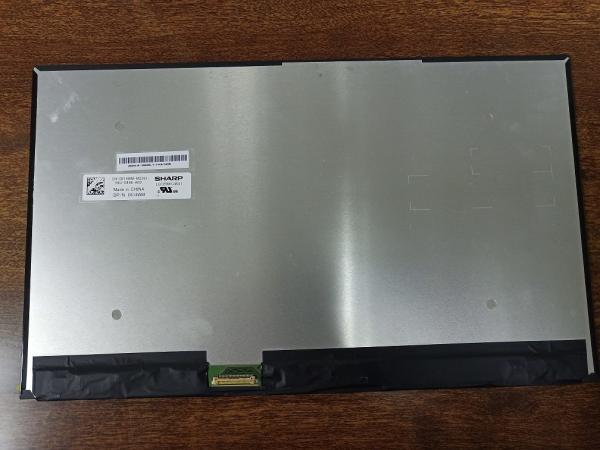

LQ125D1JW31 Sharp 12.5" LCM 3840×2160RGB 400cd/m² INDUSTRIAL LCD DISPLAY Images
|
