TIANMA TL140ADXP01 Application Features
| Basic Information : | Brand | Model | Type | Model Alias |
| | TL140ADXP01 | LTPS TFT-LCD , LCM | TMX1481 |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| | 0 ~ 50 °C | -20 ~ 60 °C |
TIANMA TL140ADXP01 Mechanical Features
| Panel Size : | 14.0 inch |
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 2560(RGB)×1600 | RGB Vertical Stripe | 0.03927×0.11781 mm | 0.11781×0.11781 mm [215PPI] |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 301.594×188.496 mm | - | 306.594×206.226 mm | 2.3±0.1 mm |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | Slim (PCBA Flat, T≤3.2mm) |
| Fixation : | Without |
| Other Features : | Panel Cover | Weight | Surface |
| - | 220g (Typ.) | Antiglare |
TIANMA TL140ADXP01 Optical Features
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
| 500 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed |
| 88/88/88/88 (Typ.)(CR≥10) | Symmetry | 9 (Typ.)(Tr+Td) (ms) |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 96% | 100% | 88% |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks |
| 100% | 72% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Luminance Variation : | 1.25/1.50 (Max.)(5/13 points) |
TIANMA TL140ADXP01 Interface Features
| Signal Electrical : | Current Input | Voltage Input | Consumption |
| 400mA (Typ.) | 3.3V (Typ.) | 1.35/1.42W (Typ./Max.) |
| Interface Features : | Position | Type | Interface |
| | Connector | eDP (4 Lanes), eDP1.3 |
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| I-PEX | 20455-040E-76 | 1 pcs | 0.5 mm | 40 pins |
TIANMA TL140ADXP01 Backlight Features
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
| WLED | Edge light type | 6 strings | 11S6P | - | - |
| Interface Features : | Position | Type | WLED Driver |
| - | Included in signal interface | With LED Driver |
| Driver Electrical : | Current Input | Voltage Input | Consumption |
| - | 5.0/12.0/21.0V (Min./Typ./Max.) |
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 301.594(W)×188.496(H) mm, outline size of 306.594(W)×206.226(H)×2.4(D) mm, with surface treament of Antiglare, net weight of 220g (Typ.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a SFT, Normally Black, Transmissive LCM product, TL140ADXP01 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (NTSC). This product adopted 11S6P WLED as it's backlight systerm which was placed as Edge light type, With LED Driver. TL140ADXP01 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)
|
|

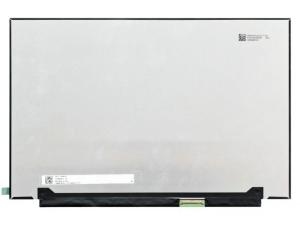

TL140ADXP01 TIANMA 14.0" 2560(RGB)×1600 500 cd/m² INDUSTRIAL LCD DISPLAY Images
|
